Protein-peptide modeling tutorial using a local version of HADDOCK3
This tutorial demonstrates the use of HADDOCK3 to predict the structure of a protein–peptide complex. The workflow makes use of pre-defined restraints (derived computationally from known interfaces of a similar protein), an AlphaFold model of the protein, and an ensemble of idealized peptide conformations.
This tutorial consists of the following sections:
- Introduction
- Setup/Requirements
- Preparing PDB files for docking
- Defining restraints for docking
- Setting up the docking with HADDOCK3
- Analysis of docking results
- Visualisation and comparison with the reference structure
- BONUS: How to use ARCTIC-3D to predict interface residues?
- Congratulations!
Introduction
In this tutorial, we will focus on docking the N-terminal peptide of p53 to the mouse MDM2 protein. The tumor suppressor p53 is often referred to as the guardian of the genome because of its central role in preventing tumor development. As a transcription factor, it regulates the cell cycle and can induce DNA repair or apoptosis in response to cellular stress. MDM2, an E3 ubiquitin ligase, is a key negative regulator of p53: by binding to its N-terminal transactivation domain (TAD) peptide, it inhibits p53 activity and promotes its degradation. The p53–MDM2 interaction is therefore of major biological and medical importance.
For the mouse MDM2–p53 system, no experimental structure of the complex is available. Modelling such interactions is challenging because protein–peptide docking is generally more difficult than protein–protein docking. This is primarily due to the intrinsic flexibility of peptides, which allows them to adopt multiple conformations, complicating prediction of the bound state.
In this tutorial, we will use HADDOCK3 to model the MDM2–p53 complex. Docking will be guided by pre-defined restraints derived from known interfaces of the human homolog of MDM2. As input structures, we will use an AlphaFold model of mouse MDM2 together with an ensemble of idealized peptide conformations. This combination will allow us to sample and predict plausible binding modes for the p53 peptide. Since no experimentally solved structure is available this complex, the human MDM2–p53 complex will be used as a reference for assessing the docking results (PDB ID: 1YCR).
Throughout the tutorial, colored text will be used to refer to questions, instructions, and PyMOL commands:
This is a question prompt: try answering it! This an instruction prompt: follow it! This is a PyMOL prompt: write this in the PyMOL command line prompt! This is a Linux prompt: insert the commands in the terminal!
Setup/Requirements
In this tutorial we will use the PyMOL molecular visualisation system. If not already installed, download and install PyMOL from here. You can use your favourite visualisation software instead, but be aware that instructions in this tutorial are provided only for PyMOL.
We assume that you have a working installation of HADDOCK3 on your system. If HADDOCK3 is not pre-installed in your system, you will have to install it. To obtain HADDOCK3, fill the registration form, and then follow the installation instructions or you can install it through:
pip install haddock3
Further, we are providing pre-processed haddock-compatible PDB and configuration files, as well as pre-computed docking results. Please download and unzip the provided zip archive and make sure to note the location of the extracted folder on your system. There is also a linux command for it:
Unzipping the file will create the HADDOCK3-protein-peptide directory, which contains the following directories and files:
pdbs: Contains the pre-processed PDB files, both the docking input, and bound reference.restraints: Contains the interface information and the correspond restraint files for HADDOCK.runs: Contains pre-computed docking results for each scenario defined inworkflowsdirectory, useful for comparison with your own run, or if you prefer to skip the computationally intensive steps.scripts: Contains two analysis scripts used in this tutorial.workflows: Contains HADDOCK3 workflow used for the docking.
Preparing PDB files for docking
The accuracy of docking results in HADDOCK3 depends heavily on the quality of the input structures. In this section, we will prepare the PDB files of the protein and peptide for docking. The protein model is created using AlphaFold, and multiple conformations of the peptide are generated using PyMOL. We will use pdb-tools to manipulate the structures to make them HADDOCK-ready, e.g. to renumber residues, assign chain IDs and generate ensemble file. By default, pdb-tools are being installed on your machine together with haddock3. pdb-tools documentation is available here.
Note: that pdb-tools is also available as a web service.
Note: Before starting to work on the tutorial, make sure to activate an appropriate virtual environment. If haddock3 was installed using conda:
For more information about accepted file formats and preparation steps, refer to the HADDOCK3 user manual – structure requirements.
Preparing the protein structure
One of the easiest ways to find information about a protein, including its structure, is to explore the UniProt database. UniProt provides detailed protein sequence and functional data, including annotations, sequence features, and links to structural information.
Open the UniProt home page (https://www.uniprot.org) and search for “mouse MDM2”.
You should see the entry “P23804 · MDM2_MOUSE”. Feel free to take you time and explore the page.
Click on the section ‘Structure’ (left side of the page) or scroll down until you reach it.
This protein has no experimentally solved 3D structure, only AlphaFold model is available. This model model covers the full-length sequence of MDM2, but for docking we only need its p53-binding domain. This domain corresponds to residues 26 to 109. Check out Family & Domains section of the UniProt to see all other regions of the protein. The remaining regions, particularly the disordered one, are known not to interact with the peptide, so it’s a good idea remove them, both to make the docking problem easier, and to reduce the computational cost of the docking.
Click the download icon at the right end of the yellow ribbon to obtain this model. At the time this tutorial was created, the file name was AF-P23804-F1-model_v4.pdb. With future updates to the AlphaFold Database, the version tag “v4” will change. Move downloaded model AF-P23804-F1-model_v4.pdb to your work directory, e.g. HADDOCK3-protein-peptide/
To prepare this model for docking, we will:
- Keep only the coordinates lines, i.e and remove REMARK and other irrelevant lines (
pdb_keepcoord), - Keep only residues of interest (
pdb_selres), - Assign chain ID (
pdb_chain), and - Apply pdb-formatting to the file (
pdb_tidy).
Note when working with the experimentally solved structures, preparation algorithm would be different, e.g. we would use
pdb_delhetatm and pdb_selaltloc.
Note pdb_tidy attempts to correct formatting only, e.g. ensure each line is long enough (padded with spaces), not the actual content of the PDB file.
It’s a good practice to verify resulting structure visually using PyMOL. Start PyMOL and load the PDB file as followed: File menu -> Open -> select HADDOCK3-protein-peptide/AF_MDM2_26_109.pdb
Feel free to compare this structure with initial AlphaFold model:
File menu -> Open -> select HADDOCK3-protein-peptide/AF-P23804-F1-model_v4.pdb
And to align two models:
align AF-P23804-F1-model_v4, AF_MDM2_26_109
If starting PyMOL directly from the command line, you can load multiple PDB files in one go:
cd HADDOCK3-protein-peptide
pymol AF_MDM2_26_109.pdb AF-P23804-F1-model_v4.pdb
Preparing peptide structure
When modelling peptides with no experimental structure available, a common approach is to perform a molecular dynamics (MD) simulation and cluster the trajectory to capture the peptide’s conformational variability. This process is computationally expensive and can be challenging in the absence of MD experience. A simpler alternative is to generate several idealized peptide conformations. While less robust, this approach still indirectly accounts for peptide’s flexibility to some degree, and that can be just enough to build a model of acceptable quality.
The sequence of interest (residues 18-32 of the p53_mouse) is:
SQETFSGLWKLLPPE
Note this sequence can be found on the UniProt page for P02340 · P53_MOUSE, under the ‘Structure’ section.
We will generate three idealized peptide conformations: α-helix, β-sheet, and polyproline II (ppII). This can be done using PyMOL’s built-in fab command. To see a usage example:
Generate all 3 conformations:
fab SQETFSGLWKLLPPE, peptide_helix, ss=1
fab SQETFSGLWKLLPPE, peptide_sheet, ss=2
fab SQETFSGLWKLLPPE, peptide_ppii, ss=0
You can save each of them either using PyMOL command line (remember to move peptide_helix.pdb to your work directory):
save peptide_helix.pdb, peptide_helix
Or, alternatively:
File menu -> Export Structure… -> Export Molecule… -> Selection “peptide_helix” -> Save -> as PDB
Once all 3 PDB files are saved in your work directory, save them as a single ensemble PDB (pdb-mkensemble) and assign chain B (pdb_chain):
pdb_mkensemble peptide_helix.pdb peptide_sheet.pdb peptide_ppii.pdb | pdb_chain -B | pdb_tidy -strict > peptide_ens.pdb
To quickly inspect the contents of the generated ensemble, you can look at the header of the file with:
Defining restraints for docking
HADDOCK relies on restraints to guide the sampling process during docking. Several types of restraints can be defined, including unambiguous and ambiguous distance restraints (AIRs). These restraints are specified using CNS (Crystallography & NMR System) syntax, which defines two atom selections and a distance range that must be satisfied. If a restraint is not fulfilled, a penalty is applied to the HADDOCK scoring function, lowering the rank of the model that violate the restraints.
To simplify, restraints are defined by specifying two types of residue selections, active and passive, together with a distance range that must be satisfied. Active residues are those known to be present in the interface and solvent accessible. If an active residues is not in the interface of a model, then energetic penalty is applied. Passive residues are typically all solvent-accessible surface neighbors of active residues, or other atoms that may plausibly be involved in the interaction. Yet if a passive residue is not part of the interface - no penalty is applied.
A distance restraint is then expressed using CNS syntax as follows:
assign (selection_1) (selection_2) target_distance, lower_margin, upper_margin
The allowed range for the distance is then:
target_distance - lower_margin ≤ distance ≤ target_distance + upper_margin
Selections can be customized using keywords such as segid (chain ID), resid (residue number), and name (atom name).
These can be combined with logical operators AND, OR to construct more complex definitions.
Please refer for that to the online CNS manual for more info.
AIRs file (.tbl) can be generated using the haddock3-restraints command line tool (installed with haddock3) or a version web version.
We will explain how to use this tool shortly, but first we need to identify which residues participate in the interaction - both active and passive.
Defining active residues for protein

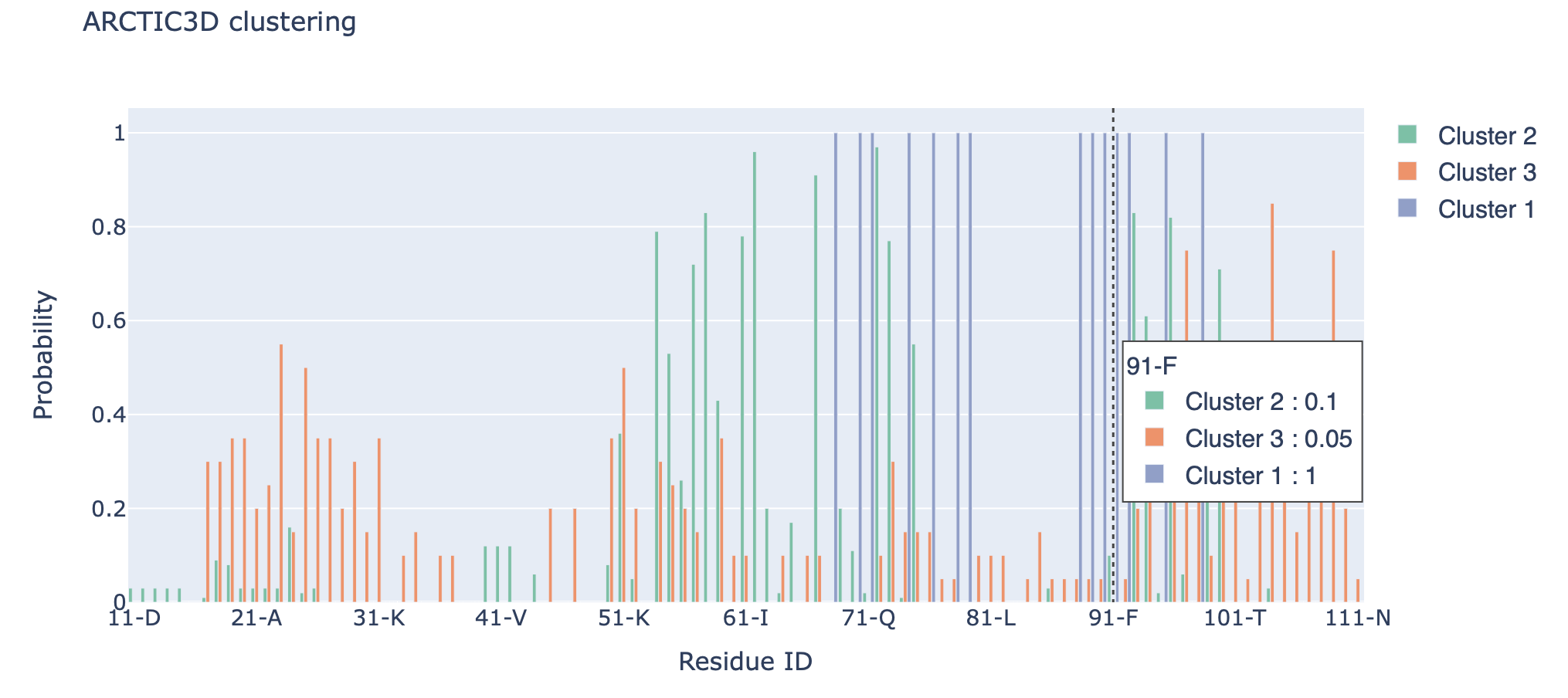

ARCTIC-3D is a data-mining tool that clusters all known interfaces of a protein, grouping similar interaction sites into residue sets that are likely to participate in binding. For mouse MDM2, no structural information is currently available, however, such data exists for its human homolog. To define plausible active residues in mouse MDM2, we applied ARCTIC-3D to the human protein and transferred the results onto mouse variant. Resulting residues were filtered based on their solvent accessibility:
54 55 58 59 62 67 72 73 93 94 100
For more details, take a look at the bonus section: How to use ARCTIC-3D?
Let’s visualize predicted active residues on the protein structure we prepared:
Open PyMOL
File menu -> Open -> select HADDOCK3-protein-peptide/AF_MDM2_26_109.pdb
color green
show surface
select active, (resid 54+55+58+59+62+67+72+73+93+94+100)
color red, active
Click to see mouse MDM2 is surface representation with active residues highlighted in red expand_more
Defining passive residues for peptide
Since no experimental data or reliable predictions are available to identify which peptide residues are directly involved in the interface, we do not define any active residues for the peptide. Instead, we assign all peptide residues as passive, allowing HADDOCK to explore possible interaction sites during docking:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Using haddock3-restraints to generate restraint file
To generate AIRs with haddock3-restraints, you need to use its sub-option active_passive_to_ambig and provide an .act-pass file that lists the active and/or passive residues for each docking partner. This file has the following syntax:
- Active residues are written on the first line, separated by spaces.
- Passive residues are written on the second line, also separated by spaces. If no active residues are defined, the first line should remain empty. The same applies to the second line if no passive residues are used.
In our case, this is the file for MDM2, protein-AR3D-active.act-pass:
54 55 58 59 62 67 72 73 93 94 100
And the file for p53, peptide-ens-passive.act-pass:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Create these files manually, or access pre-made ones in restraints/.
This files can then be used as input to haddock3-restraints active_passive_to_ambig to generate the restraint file:
Note that passive residues on partner 1 should only be defined if active residues have been specified on partner 2, and vice versa.
Typically, active residues are complemented by nearby passive residues on the same molecule to account for uncertainties in the binding site definition. But if there’s no active residues on the partner 2 - passive residues of partner 1 have nothing to interact with. In this tutorial, active residues are defined only for MDM2, while no active residues are defined for the peptide. Thus, we only assign the peptide residues as passive.
Restraints validation
After generating protein-peptide_ambig.tbl, one can validate the syntax of this file using:
haddock3-restraints validate_tbl protein-peptide_ambig.tbl --silent If the file is valid, there will be no output.
Note: This command checks only the file’s formatting, not the biological correctness or content of the restraints.
Setting up the docking with HADDOCK3
Having now all the required input files and restraints, we can proceed with the docking setup!
HADDOCK3 workflow definition
The first step is to create a HADDOCK3 configuration file that will define the docking workflow. We will follow a classic HADDOCK workflow that include topology generation, rigid-body minimization, semi-flexible interface refinement, and final refinement, followed by model selection, clustering, and evaluation.
We will include multiple evaluation instances (caprieval module) to compare models to either the best scoring model (if no reference is given) or a reference structure, which in our case we have at hand. This will allow us to assess the performance of the protocol.
The modules included in this workflow are:
topoaa: Generates the topologies for the CNS engine and builds missing atoms.rigidbody: Rigid body energy minimization with CNS (it0in HADDOCK2.x).caprieval: Evaluates the rigid-body models using CAPRI metrics (i-RMSD, l-RMSD, Fnat, DockQ).flexref: Semi-flexible refinement of the interface (it1in haddock2.4).caprieval: Evaluates theflexrefmodels using CAPRI metrics.emref: Final refinement by energy minimisation (itwEM only in HADDOCK2.X).caprieval: Evaluates theemrefmodels using CAPRI metircs.seletop: Selects the top models based on scoring.rmsdmatrix: Generates the pairwisw RMSD matrix for all models to asses structural similarity.clustrmsd: Clustering of models based on the RMSD.caprieval: Evaluates the clustered models using CAPRI metrics.seleoptclusts: Selects the top models of all clusters.caprieval: Evaluates the final selected models using CAPRI metrics.
The configuration file can be found in workflow/protein_peptide_docking.cfg and is as follows:
# ============================================
# Protein–Peptide Docking in HADDOCK3
# ============================================
# Output directory
run_dir = "runs/run1"
# Compute mode and resources
mode = "local"
# HADDOCK will use maximum of 40 cores, or as many, as available on the system
ncores = 40
# Post-processing
postprocess = true
clean = true
# Input files
molecules = [
"pdbs/AF_MDM2_26_109.pdb", # Protein
"pdbs/peptide_ens.pdb" # Peptide
]
# ============================================
# Workflow
# ============================================
[topoaa]
[rigidbody]
ambig_fname = "restraints/protein-peptide_ambig.tbl"
sampling = 1000
[caprieval]
reference_fname = "pdbs/1YCR.pdb"
[flexref]
tolerance = 5
ambig_fname = "restraints/protein-peptide_ambig.tbl"
[caprieval]
reference_fname = "pdbs/1YCR.pdb"
[emref]
tolerance = 5
ambig_fname = "restraints/protein-peptide_ambig.tbl"
[caprieval]
reference_fname = "pdbs/1YCR.pdb"
[seletop]
select = 200
[caprieval]
reference_fname = "pdbs/1YCR.pdb"
[rmsdmatrix]
[clustrmsd]
clust_cutoff = 5
plot_matrix = true
[caprieval]
reference_fname = "pdbs/1YCR.pdb"
[seletopclusts]
# Selection of the top 4 best scoring complexes from each cluster
top_models = 4
[caprieval]
reference_fname = "pdbs/1YCR.pdb"You might’ve noticed that some of the modules do not have any parameters defined. In this case, HADDOCK will use default values, which can be displayed per module. For example, to see all parameters for clustrmsd, type:
haddock3-cfg -m clustrmsd
This workflow is ready-to-run, and can be executed as-is, using pre-made PDB and restraint files. To use your own files, make sure you provide correct relative or absolute path for each file used during the run (molecules, ambig_fname and reference_fname).
If you are using your own reference, make sure the PDB file is adequately preprocessed (for example, using pdb_tools).
Running HADDOCK3
To run the docking (in local mode), open the terminal, activate your haddock3 environment, navigate to protein-pepitde/ and execute:
haddock3 workflows/protein_peptide_docking.cfg
In this case docking log will appear on the screen. Alternative, you can run the docking in the background and save output log to a file, e.g. haddock.log, and any kind of error message to haddock.err:
haddock3 ./workflows/protein_peptide_docking.cfg > haddock.log 2> haddock.err
On a Max OSX M2 processor using 8 cores the full workflow completes in about 2h10m55s. Pre-computed results are available in runs/run1/
Best practices in protein–peptide docking (and tutorial choices)
For optimal peptide docking with HADDOCK, the following settings are recommended:
- In
flexref, setmdsteps_cool1to 2000 (default: 500); - In
flexref, setmdsteps_rigidto 2000 (default: 500); - In
flexref, setmdsteps_cool2to 4000 (default: 500); - In
flexref, setmdsteps_cool3to 4000 (default: 500); - Use
clustrmsdfor clustering instead of the defailtclustfccand - In
clustrmsd, setclust_cutoffto 5 (default: 7.5).
Additionally, when dealing with an ensemble docking with HADDOCK, one should consider increasing the number of models to be sampled (rigidbody module, parameter sampling) with respect to the number of ensemble conformers.
HADDOCK distributes the sampling evenly across all possible combinations of input conformers.
If you set sampling = X and provide an input ensemble of n peptide conformers and m protein conformers, each peptide–protein pair will be sampled X/(n·m) times, minus rounding error.
E.g. with sampling = 1000, 3 peptide conformers and 1 protein conformer, HADDOCK will generate a total of 999 models, with each protein–peptide conformer combination sampled 1000/(3·1) = 333.33(3) ≈ 333 times.
On the contrary, both increasing sampling and mdsteps_ parameters will lead to the heafty increase of the computational resourses required.
To balance efficiency and accuracy in this tutorial, we keep the best-practice settings for clustering but chose not to increase sampling or MD step counts.
Despite these simplifications, the use of reliable restraints and asseptable input PDBs ensures that the docking still produces meaningful models.
Note that pre-computed best-practice run - with all recommended settings applied - can be found in runs/run_bp/.
Analysis of docking results
Once your run has completed (or once you open precomputed runs/run1/), inspect the content of the resulting directory. You will find the various steps (modules) of the defined workflow numbered sequentially:
> ls runs/
00_topoaa/
01_rigidbody/
02_caprieval/
03_flexref/
04_caprieval/
05_emref/
06_caprieval/
07_seletop/
08_caprieval/
09_rmsdmatrix/
10_clustrmsd
11_caprieval/
12_seletopclusts/
13_caprieval/
analysis/
data/
log
traceback/In addition to the various modules defined in the workflow file, you will also find a log file (text file) and three additional directories:
datadirectory containing the input data (PDB and restraint files) for the various modules, as well as original workflow configuration file;analysisdirectory containing various plots to visualise the results for each caprieval step;tracebackdirectory containing the names of the generated models for each step, allowing to trace back a model and it’s rank throughout the various stages.
You can find information about the duration of the run at the bottom of the log file. Each sampling/refinement/selection module will contain PDB files - models produced by this module.
For example, the 12_seletopclusts directory contains the best models from top-ranked clusters. The clusters in that directory are numbered based on their rank, i.e. cluster_1 refers to the best-ranked cluster. Information about the origin of these files can be found in that directory in the seletopclusts.txt file.
Docking run overview via visual statistics
The quickest way (though not the most detailed) to get an overview of a docking run is through the visual statistics provided by the caprieval module.

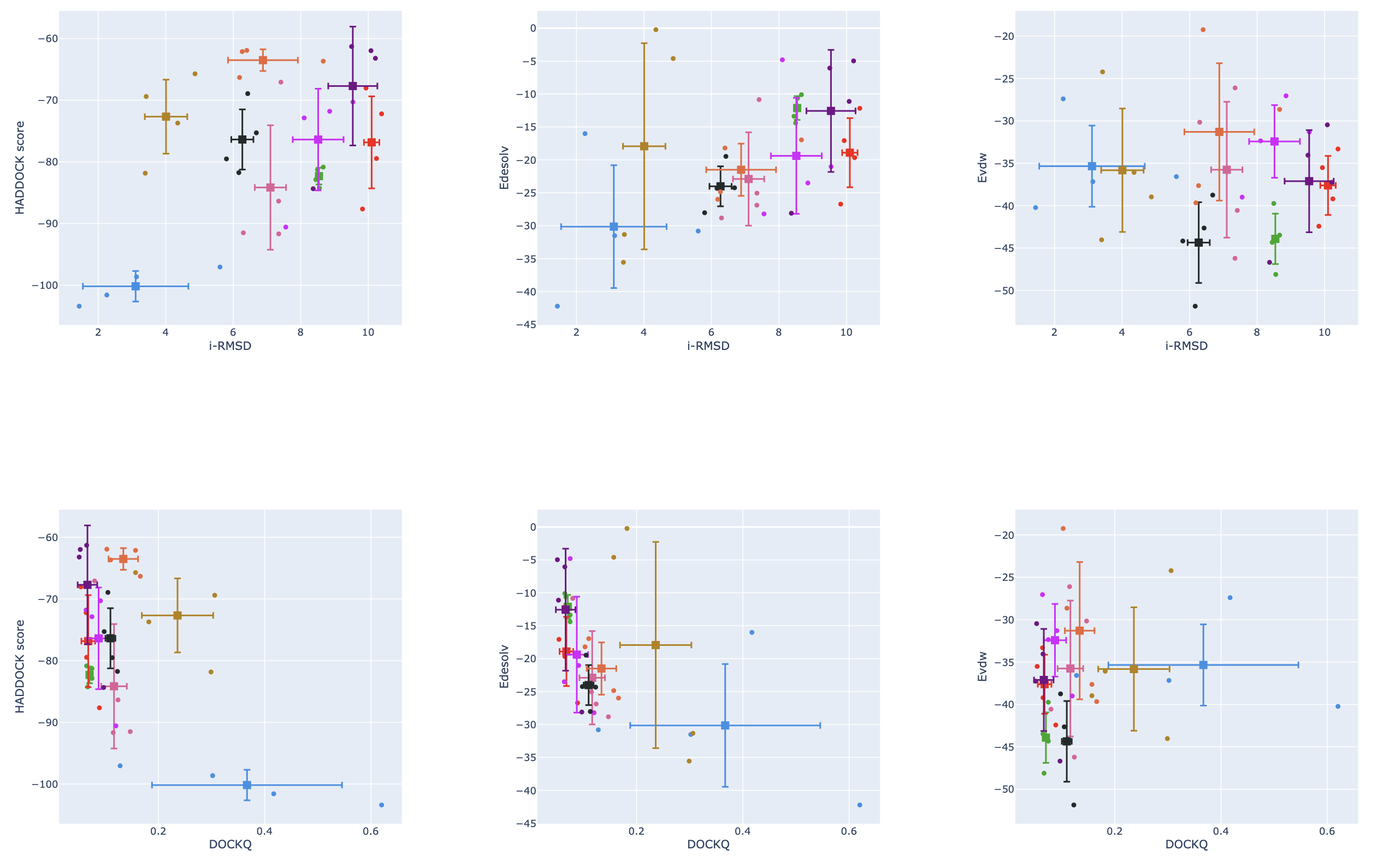

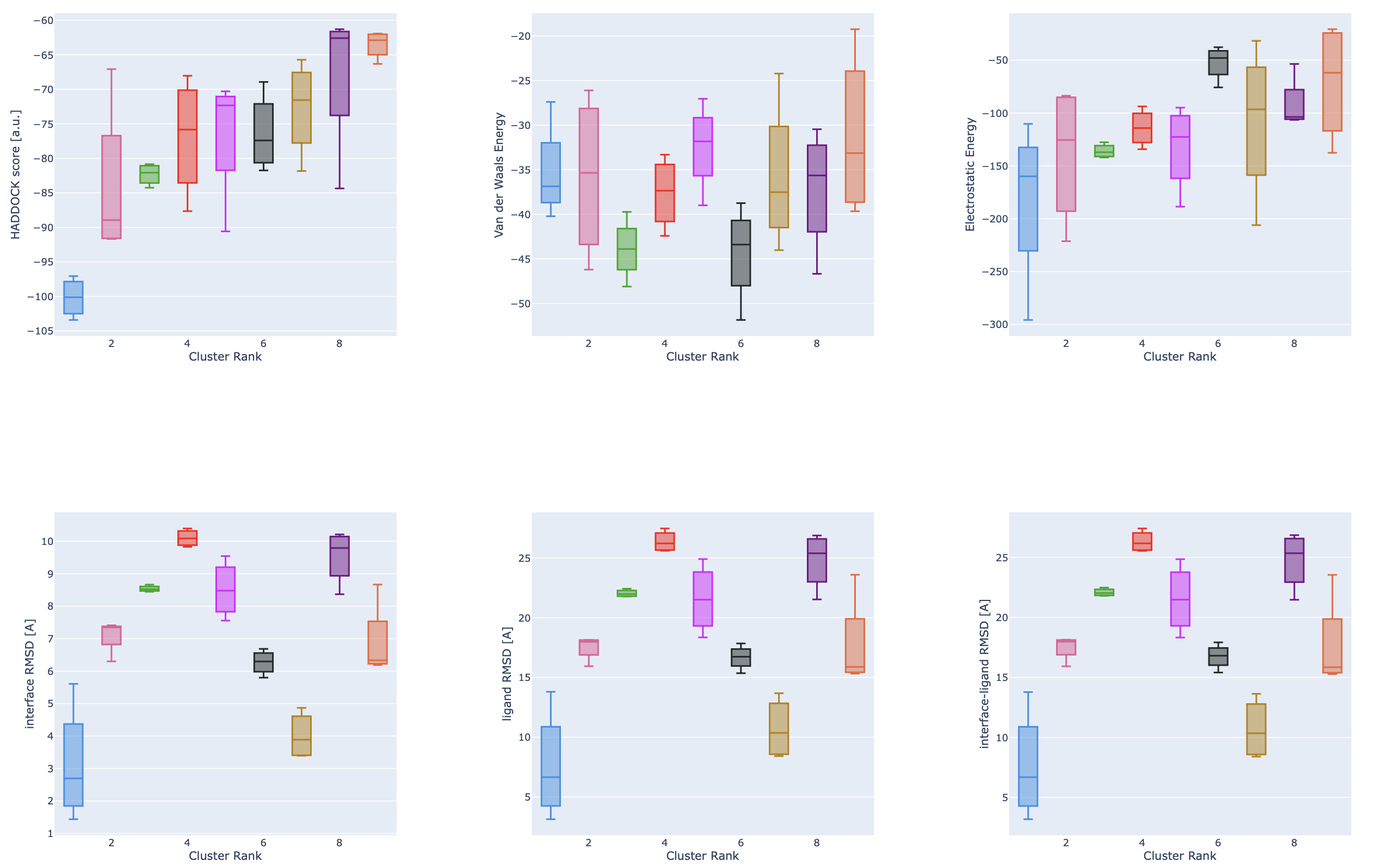

Each caprieval step generates a summary table and multiple plots, bundled into a report.html file.
These reports can be found in the corresponding analysis directories, e.g. analysis/XX_caprieval_analysis/.
This is one of the reasons why the caprieval module is included after almost every step of the workflow.
The content of report.html depends on where in the workflow the corresponding caprieval module is placed.
If it follows an early step, the report describes unclustered models and details 10 top-ranked models (e.g. analysis/04_caprieval_analysis/report.html).
If it follows clustering, the report summarizes clusters and their top models (e.g. analysis/13_caprieval_analysis/report.html).
To open report.html in a web-browser, click here, or type:
open run1/analysis/13_caprieval_analysis/report.html

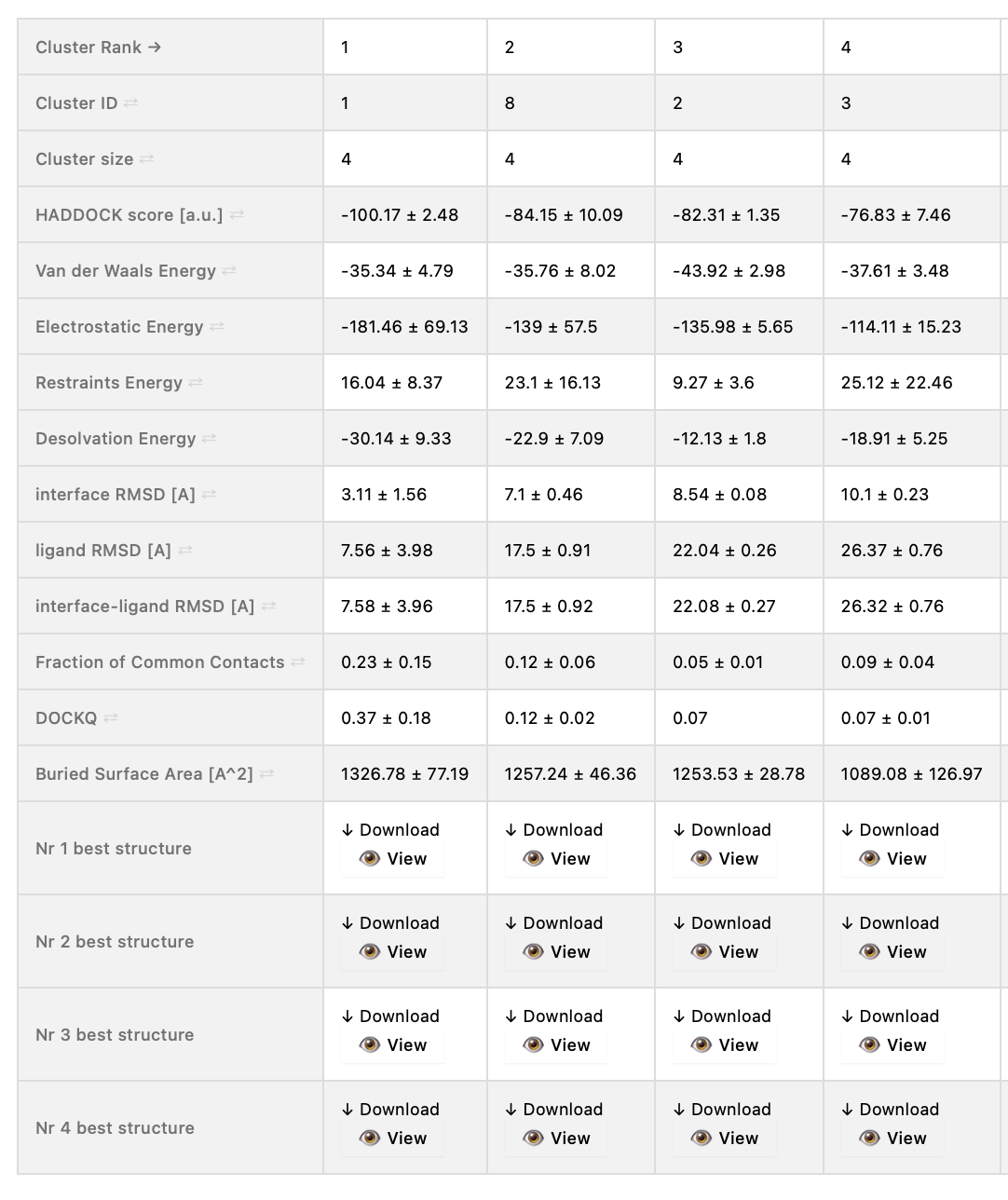

At the top of the page, you will find a summary table of the cluster statistics (taken from the 13_caprieval/capri_clt.tsv file).
By default, the table is sorted by cluster rank, which is based on the HADDOCK score.
The table is interactive anf you can re-sort columns (corresponding to the various clusters) by clicking the arrow icon (⇄) in the header rows.
The table reports averages and standard deviations for the HADDOCK score, its components, and evaluation metrics. Some key statistics are:
HADDOCK score: The HADDOCK score (arbitrary units)Interface RMSD: The interface RMSD (irmsd), calculated over the interfaces the molecules.Fraction of Common Contacts: The fraction of common contacts (fcc) between given model and top-ranked model. In case reference strucutre is povided, this metric displays the fraction of native contacts (fnat) - between given model and reference strucutre.Ligand RMSD: The ligand RMSD (lrmsd), calculated on the ligand after fitting on the receptor (1st component).Interface-ligand RMSD: The interface-ligand RMSD (ilrmsd), calculated over the interface of the ligand after fitting on the interface of the receptor (more relevant for small ligands for example).DockQ: The DockQ score, which is a combination of irmsd, lrmsd and fnat and provides a continuous scale between 1 (exactly equal to reference) and 0.
The iRMSD, lRMSD and Fnat metrics are the ones used in the blind protein-protein prediction experiment CAPRI (Critical PRediction of Interactions).
In CAPRI the quality of a model is defined as (for protein-protein complexes):
- acceptable model: i-RMSD < 4Å or l-RMSD<10Å and Fnat > 0.1 (or DockQ > 0.23)
- medium quality model: i-RMSD < 2Å or l-RMSD<5Å and Fnat > 0.3 (or DockQ > 0.49)
- high quality model: i-RMSD < 1Å or l-RMSD<1Å and Fnat > 0.5 (or DockQ > 0.8)
Examine the table. Does the cluster with the lowest average score has lowest average irmsd?
Below the table, a variety of plots displaying the HADDOCK score vs its components against various metrics with a color-coded representation of the clusters. These are interactive plots, one can toggle which clusters are displayed, zoom in and out, etc. - using a menu on the top right of the first row (you might have to scroll to the right to see it).
Finally, the very bottom plots diplayes the cluster statistics:
Detailed information about models and clusters
To extract most of the avalilable information about the model(s), one should look at the XX_caprieval directories.
This directory will always contain a capri_ss.tsv file, which contains the model names, rankings and statistics, e.g. 11_caprieval/capri_ss.tsv:
model md5 caprieval_rank score irmsd fnat lrmsd ilrmsd dockq rmsd cluster_id cluster_ranking model-cluster_ranking air angles bonds bsa cdih coup dani desolv dihe elec improper rdcs rg sym total vdw vean xpcs
../05_emref/emref_280.pdb - 1 -103.403 1.437 0.458 3.139 3.184 0.620 1.249 1 1 1 11.045 66.508 10.291 1266.690 0.000 0.000 0.000 -42.226519.082 -110.279 13.374 0.000 0.000 0.000 -139.461 -40.226 0.000 0.000
../05_emref/emref_331.pdb - 2 -101.588 2.256 0.229 5.365 5.385 0.417 1.941 1 1 2 9.775 64.115 13.897 1420.890 0.000 0.000 0.000 -16.012541.892 -295.776 16.619 0.000 0.000 0.000 -313.399 -27.398 0.000 0.000
../05_emref/emref_195.pdb - 3 -98.641 3.134 0.188 7.947 7.992 0.302 2.658 1 1 3 30.399 59.802 10.347 1236.320 0.000 0.000 0.000 -31.515 541.989-164.995 13.680 0.000 0.000 0.000 -171.762 -37.167 0.000 0.000
../05_emref/emref_87.pdb - 4 -97.050 5.607 0.042 13.802 13.778 0.128 4.714 1 1 4 12.931 66.559 10.655 1383.200 0.000 0.000 0.000 -30.812 534.429-154.782 15.061 0.000 0.000 0.000 -178.425 -36.575 0.000 0.000
../05_emref/emref_535.pdb - 5 -91.671 7.347 0.125 18.121 18.097 0.115 6.173 8 2 1 37.430 56.527 10.334 1267.570 0.000 0.000 0.000 -25.055 530.791-221.283 12.885 0.000 0.000 0.000 -209.955 -26.103 0.000 0.000
../05_emref/emref_516.pdb - 6 -91.505 6.299 0.167 15.940 15.926 0.147 5.332 8 2 2 3.678 59.310 10.443 1193.220 0.000 0.000 0.000 -28.827 523.618-164.442 14.663 0.000 0.000 0.000 -190.921 -30.157 0.000 0.000
../05_emref/emref_969.pdb - 7 -90.572 7.556 0.146 18.350 18.325 0.120 6.340 5 5 1 36.431 56.119 9.840 1306.030 0.000 0.000 0.000 -28.212 528.441-135.020 14.626 0.000 0.000 0.000 -137.588 -38.999 0.000 0.000
../05_emref/emref_271.pdb - 8 -89.669 3.531 0.104 9.525 9.502 0.233 3.053 1 1 5 3.724 65.185 10.717 1142.830 0.000 0.000 0.000 -29.924 520.532-70.314 14.768 0.000 0.000 0.000 -112.645 -46.054 0.000 0.000
../05_emref/emref_852.pdb - 9 -87.644 9.828 0.146 25.599 25.541 0.089 8.298 3 4 1 58.163 55.462 10.341 1304.070 0.000 0.000 0.000 -26.725 526.028-121.548 12.783 0.000 0.000 0.000 -105.811 -42.426 0.000 0.000
...
In case where the caprieval module was called after a clustering step, an additional capri_clt.tsv file will be present in the directory. This file contains the cluster ranking and score statistics, averaged over the minimum number of models defined for clustering (4 by default), with their corresponding standard deviations, e.g. 11_caprieval/capri_clt.tsv:
cluster_rank cluster_id n under_eval score score_std irmsd irmsd_std fnat fnat_std lrmsd lrmsd_std dockq dockq_std ilrmsd ilrmsd_std rmsd rmsd_std air air_std bsa bsa_std desolv desolv_std elec elec_std total total_std vdw vdw_std caprieval_rank 1 1 125 - -100.170 2.477 3.108 1.562 0.229 0.150 7.563 3.983 0.367 0.179 7.585 3.960 2.640 1.297 16.037 8.367 1326.775 77.191 -30.141 9.327 -181.458 69.133 -200.762 66.680 -35.341 4.791 1 2 8 5 - -84.151 10.090 7.100 0.463 0.115 0.056 17.505 0.912 0.117 0.024 17.503 0.917 5.970 0.369 23.103 16.128 1257.242 46.358 -22.902 7.088 -139.000 57.498 -151.657 49.813 -35.759 8.016 2 3 2 16 - -82.312 1.350 8.538 0.082 0.052 0.010 22.035 0.263 0.071 0.004 22.085 0.274 7.229 0.078 9.269 3.596 1253.533 28.777 -12.127 1.805 -135.983 5.649 -170.630 2.214 -43.916 2.976 3 4 3 11 - -76.833 7.460 10.099 0.229 0.089 0.037 26.372 0.764 0.068 0.013 26.323 0.764 8.541 0.203 25.125 22.462 1089.075 126.968 -18.911 5.253 -114.106 15.228 -126.594 27.678 -37.614 3.485 4 5 5 8 - -76.379 8.245 8.514 0.753 0.094 0.052 21.566 2.476 0.088 0.021 21.533 2.461 7.179 0.662 18.685 11.196 1126.436 129.493 -19.390 8.808 -132.176 35.568 -145.914 32.684 -32.423 4.286 5 6 4 9 - -76.368 4.881 6.269 0.328 0.068 0.023 16.667 0.891 0.110 0.009 16.736 0.899 5.301 0.268 24.795 13.112 1150.585 62.269 -24.017 3.038 -52.364 14.345 -71.926 11.076 -44.357 4.763 6 7 6 7 - -72.663 6.002 4.009 0.629 0.177 0.074 10.705 2.214 0.236 0.067 10.682 2.189 3.427 0.548 26.332 15.668 1211.172 38.298 -17.933 15.664 -107.707 63.530 -117.197 64.538 -35.821 7.280 7 8 7 7 - -67.701 9.637 9.540 0.728 0.068 0.034 24.795 2.084 0.066 0.018 24.756 2.102 8.109 0.624 3.507 4.671 1035.520 65.979 -12.564 9.268 -91.881 22.162 -125.484 21.545 -37.111 6.027 8 9 9 4 - -63.502 1.756 6.879 1.034 0.156 0.067 17.669 3.435 0.134 0.028 17.629 3.433 5.860 0.923 34.061 17.099 1001.322 75.611 -21.500 3.965 -70.569 48.643 -67.802 52.681 -31.294 8.104 9
In this file you find the cluster rank (which corresponds to the naming of the clusters in the previous seletop directory), the cluster ID (which is related to the size of the cluster, 1 being always the largest cluster), the number of models (column n) in the cluster and the corresponding statistics (averages + standard deviations).
These simple text files can be somewhat cumbersome to read “as-is”, but they can be easily manipulated using command line. The following commands will extract the best 3 models based on the DockQ score: sort -r -k9 run1/02_caprieval/capri_ss.tsv | head -4
Performance analysis (when reference is available)
In case a reference structure is available, one may want to analyse the performance of the docking protocol, for example to count how many models of different quality were generated at each step of the workflow.
This can be done with a simple bash script provided in HADDOCK3-protein-peptide/scripts/.
This script extracts CAPRI statistics per model and reports the number of models of acceptable or better models from each caprieval steps.
To use it, run the script with the path to the run directory you want to analyse as its argument:
bash ./scripts/extract-capri-stats.sh ./runs/run1
View the output of the script expand_more
============================================== == ./02_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 101 out of 999 Total number of medium or better models: 5 out of 999 Total number of high quality models: 0 out of 999 First acceptable model - rank: 1 i-RMSD: 2.651 Fnat: 0.229 DockQ: 0.363 First medium model - rank: 2 i-RMSD: 1.914 Fnat: 0.271 DockQ: 0.470 Best model - rank: 4 i-RMSD: 1.774 Fnat: 0.250 DockQ: 0.485 ============================================== == ./04_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 102 out of 999 Total number of medium or better models: 3 out of 999 Total number of high quality models: 0 out of 999 First acceptable model - rank: 1 i-RMSD: 2.574 Fnat: 0.083 DockQ: 0.318 First medium model - rank: 12 i-RMSD: 1.517 Fnat: 0.396 DockQ: 0.584 Best model - rank: 12 i-RMSD: 1.517 Fnat: 0.396 DockQ: 0.584 ============================================== == ./06_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 103 out of 999 Total number of medium or better models: 3 out of 999 Total number of high quality models: 0 out of 999 First acceptable model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 First medium model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 Best model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 ============================================== == ./08_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 57 out of 200 Total number of medium or better models: 3 out of 200 Total number of high quality models: 0 out of 200 First acceptable model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 First medium model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 Best model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 ============================================== == ./11_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 57 out of 192 Total number of medium or better models: 3 out of 192 Total number of high quality models: 0 out of 192 First acceptable model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 First medium model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 Best model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 ============================================== == ./13_caprieval/capri_ss.tsv ============================================== Total number of acceptable or better models: 5 out of 36 Total number of medium or better models: 1 out of 36 Total number of high quality models: 0 out of 36 First acceptable model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 First medium model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620 Best model - rank: 1 i-RMSD: 1.437 Fnat: 0.458 DockQ: 0.620
Note: To extract similar statistics per cluster, use scripts/extract-capri-stats-clt.sh.
Visualisation and comparison with the reference structure
It’s time to visualise some of the docking models! This part is not only nice and colorful, but also quite important. Model visualisation allows you to check whether the models look as expected, if the clusters well-defined, zoom in on the interface, etc.
To visualize the models from the top cluster of your favorite run, start PyMOL and load the cluster representatives you want to view, e.g. this could be the top models from cluster 1. These can be found in the runs/run1/12_seletopclusts/ directory. Each run has a similar directory. Alternatively, in analysis/XX_caprieval_analysis you can find summary.tgz with either top-models of best clusters (decompress with tar -xf summary.tgz), or top-10 models among all unclustered ones.
File menu -> Open -> cluster_1_model_1.pdb
Note that the PDB files are compressed (gzipped) by default at the end of a run. PyMOL can read the gzipped files, but you can decompress those with the gunzip command.
If you want to get an impression of how well-defined a cluster is, repeat this for the best X models you want to view (cluster_1_model_X.pdb).
Load the reference structure 1YCR.pdb from pdbs/.
Alternatively, if reference has been used in caprieval, it can be found in corresponding run1/data/XX_caprieval/
File menu -> Open -> select 1YCR.pdb
Once all files have been loaded, display models in cartoon representatin and colour by chain:
show cartoon
util.cbc
For proteins and other large molecules, colouring by chains is usually sufficient, as their 3D structure makes it easy to distinguish the N- and C-termini.
However, for small peptides in near-idealised conformations, the structure alone often makes it difficult to tell which terminus is which.
To overcome this, we can color the peptide sequentially, with one terminus in blue and the other in red:
select (1YCR and chain B)
spectrum count, rainbow, sele
Repeat for each loaded model.
Now, to superimpose all models onto the reference structure using both chains:
alignto 1YCR
To maximize the differences you can superimpose all models using a single chain. For example to fit all models on the protein of the reference structure use: alignto 1YCR and chain A
Note: You can hide or display a model by clicking on its name in the right panel of the PyMOL window.
See the overlay of the selected model onto the reference structure expand_more
Top-ranked model from the top cluster (cluster_1_model_1) superimposed onto the reference structure. The modeled protein is shown in cyan with its peptide colored in the standard spectrum. The reference protein is shown in green with its peptide colored in a darker variant of the spectrum.
BONUS: How to use ARCTIC-3D to predict interface residues?
ARCTIC-3D, is a tool and a web-server for automatic retrieval and clustering of protein–ligand interfaces from available 3D structures. It can be used to predict interface residues, which in turn can be used as active (or passive) residues to guide docking.
Our target complex is the mouse variant of MDM2 binding to p53m for which no structural data are available, as mouse MDM2 in not solved experimentally. Fortunately, its close homolog, the human MDM2 protein, has been extensively studied experimentally. This information can be leveraged with ARCTIC-3D to infer likely interface residues for the mouse protein.
In a nutshell, ARCTIC-3D will retrieve available on PDB complexes involving input protein (idenified via its UniProtID), cluster all available interfaces, and output a list of residues that are likely to be present in the binding site of each cluster, along with corresponding probabilities. As different binding interfaces are often associated with different protein functions, it’s a good idea to take these functions into account while clustering. For more details, please refer to the original publication.
Can you find UniProtID for MDM2_human?
See answer expand_more
Q00987Open ARCTIC-3D web-server and enter the UniProt_ID of MDM2_human. Check “Cluster partners by protein function” Click on “Submit”.
In a few seconds or a few minutes, ARCTIC-3D will return a set of clusters representing possible binding surfaces with respect to protein functions. Take a look at the “ARCTIC3D clustering” plot: you’ll see that some amino acids are found in the interfaces of the multiple clusters, e.g. 91-F - clusters 2, 3 and 1, while some residues are found only in a single cluster e.g. 105-R - cluster 3 only.
NOTE this ARCTIC-3D run was performed in September 2025 and thus used strucutes available online at that time. With the time, new structures of MDM2_human may became available, which may lead to the change in the number and numbering of clusters. So if you’re running ARCTIC-3D in the future, don’t be surprised if the output looks a bit different!
Inspect each of the 3 clusters by clicking on the corresponding tab. Click on the “Load model” to see visual representations of the interfaces. Can you spot a difference?

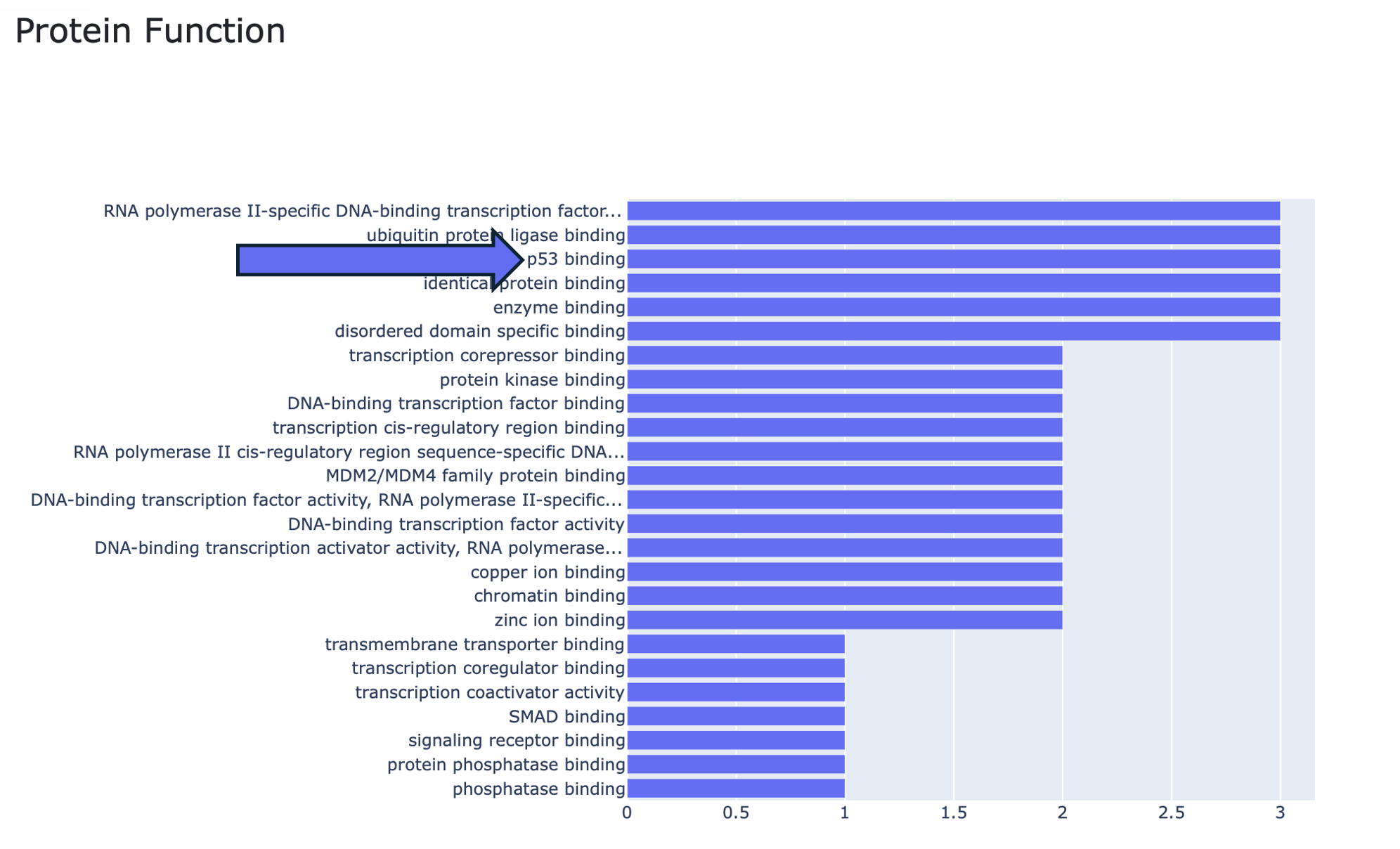

What is the most relevant cluster in our case? Pay attention to the protein function!
See answer expand_more
Cluster 2, as p53 binding is one of the dominant functions.
Each residue within these clusters is assigned a contact probability score, which is saved in the B-factor column of the output PDB file. These values allow a visual inspection of the predicted interfaces using PyMOL.
To color model by values of B-factor column, cyan for low vlues and red for high values: spectrum b, cyan_red
We used probability threshold of 0.5 to select candidates for active residues, which resulted in the following list:
72 62 67 93 58 96 54 61 73 57 100 94 75 99 55
Since our docking input is a mouse MDM2 model, not the human reference structure, we should align both structures in PyMOL and map residues from ARCTIC-3D stucutre to mouse MDM2 model (AF_MDM2_26_109.pdb).
As you may remember from the definition of active residues, they should be solvent accessible. Relative solvent accessibility (RSA) measures the percentage of a residue’s surface that is exposed to solvent, typically water. It reflects how accessible a residue is to potential binding partners. Buried residues are unlikely to contribute directly to binding, as they are often simply unreachabe for the docking partner. Default RSA threshlod for active residues is 40%; for passive - 15%. Therse values are a suggestions, not a hard rule.
In our case, we chose a cutoff of 25% for the active residues.
There are many tools available for calculating RSA, e.g. PyMOL’s built-in function get_sasa_relative, the Biopython module Bio.PDB.SASA etc.
We used FreeSASA, an open-source tool that computes RSA and related solvent accessibility values directly from PDB structures.
After installing FreeSASA, you can run it with the following command:
freesasa –format=rsa AF_MDM2_26_109.pdb
View freesasa output expand_more
The column of interest is `All-atoms`, sub-column `REL`REM FreeSASA 2.1.2 REM Absolute and relative SASAs for pdbs/AF_MDM2_26_109.pdb REM Atomic radii and reference values for relative SASA: ProtOr REM Chains: A REM Algorithm: Lee & Richards REM Probe-radius: 1.40 REM Slices: 20 REM RES _ NUM All-atoms Total-Side Main-Chain Non-polar All polar REM ABS REL ABS REL ABS REL ABS REL ABS REL RES THR A 26 154.31 109.8 106.32 107.8 48.00 114.4 89.64 120.4 64.67 97.8 RES LEU A 27 123.68 68.9 96.37 68.9 27.30 68.6 96.39 67.7 27.28 73.4 RES VAL A 28 19.16 12.6 18.39 16.6 0.76 1.8 19.16 16.6 0.00 0.0 RES ARG A 29 136.97 57.5 136.14 69.4 0.83 2.0 36.29 49.6 100.68 61.0 RES PRO A 30 4.19 3.1 0.00 0.0 4.19 15.2 0.00 0.0 4.19 26.0 RES LYS A 31 87.33 42.6 86.72 53.2 0.61 1.5 46.06 41.5 41.28 44.0 RES PRO A 32 110.32 80.4 103.66 94.5 6.66 24.2 104.86 86.6 5.45 33.9 RES LEU A 33 94.62 52.7 94.62 67.7 0.00 0.0 94.62 66.5 0.00 0.0 RES LEU A 34 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 RES LEU A 35 31.29 17.4 31.29 22.4 0.00 0.0 31.29 22.0 0.00 0.0 RES LYS A 36 130.72 63.8 121.89 74.8 8.83 21.0 78.25 70.4 52.46 55.9 RES LEU A 37 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 RES LEU A 38 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 0.00 0.0 RES LYS A 39 87.45 42.7 69.84 42.9 17.61 41.9 45.62 41.1 41.84 44.6 ...
Congratulations!
You’ve reached the end of this basic protein-peptide docking tutorial! We hope it has been informative and helps you get started with your own docking projects. Do you want more protein-peptide docking workflow examples, this time with explicit flexibility? Check this page.
